HT-C-6-A4 Single-Cylinder Smart Card Laminator

HT-C-6-A4 Card Laminating Machine
The use of unit hydraulic station system, PLC automation control, touch screen interface settings, temperature, high precision pressure, low noise, easy to operate;
Single tower heating, the next cooling structure, a cold and a hot, high efficiency, energy saving; for the production of various types of personalized inkjet, digital portrait card, smart IC, ID, Inlay lamination; Fill cards, and pre-printing proofing test.

Get A Quote Contact Us

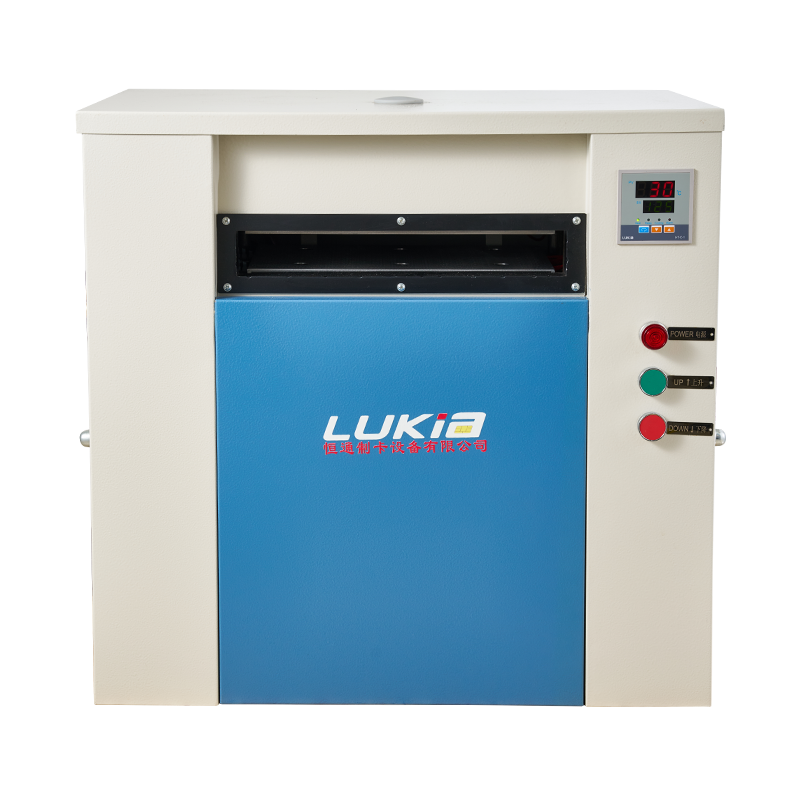

HT-C-9-A4 Fully Automatic Laminator HT-C-3 PID Electric Heating Smart Card Laminator

Detail Parameters Get A Quote

Format	210*297mm
ISO CR-80 Templates	A 10-up layout for standard ISO cards on sheet
Speed	Output up to 100 cards/cycle (ISO CR-80 cards)
Loading	1 opening of heating, 1 opening of cooling
Controlling Method	PLC
Pressure Method	Oil hydraulic pressure system
Pressure Range	0~160 bar (0~2300 psi), 2 steps pressure
Heating Method	Heating elements (Heating tubes) - PID
Cooling Method	Water cooling (water in / water out)
Power	220V, 50/60Hz - 3.5KW
Machine Weight (Packed)	Approximately 150 KGS
Total Shipping Dimensions	H630×W490×H640 mm (1 crate)
