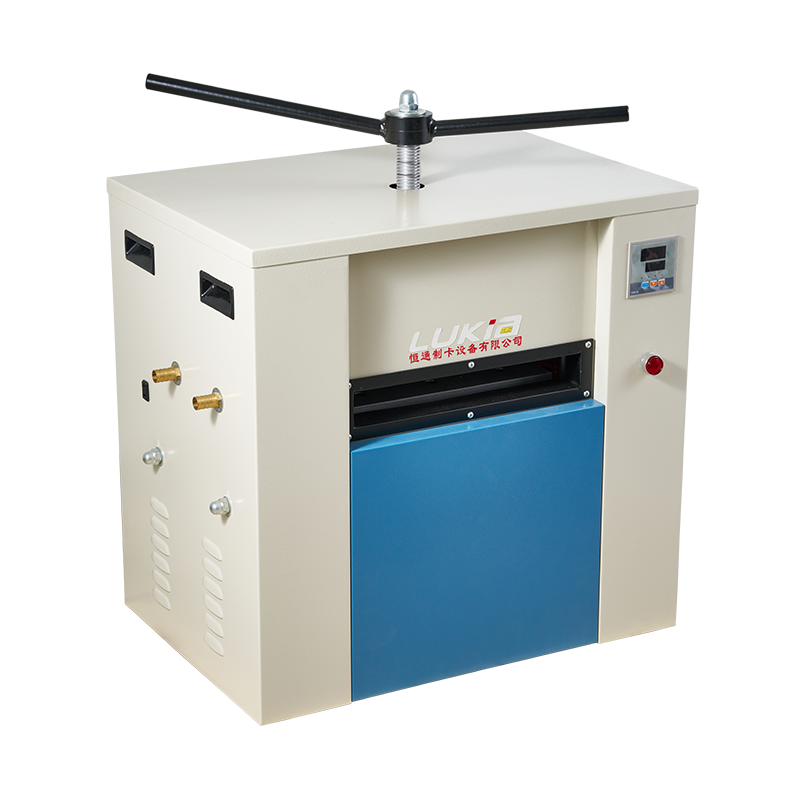

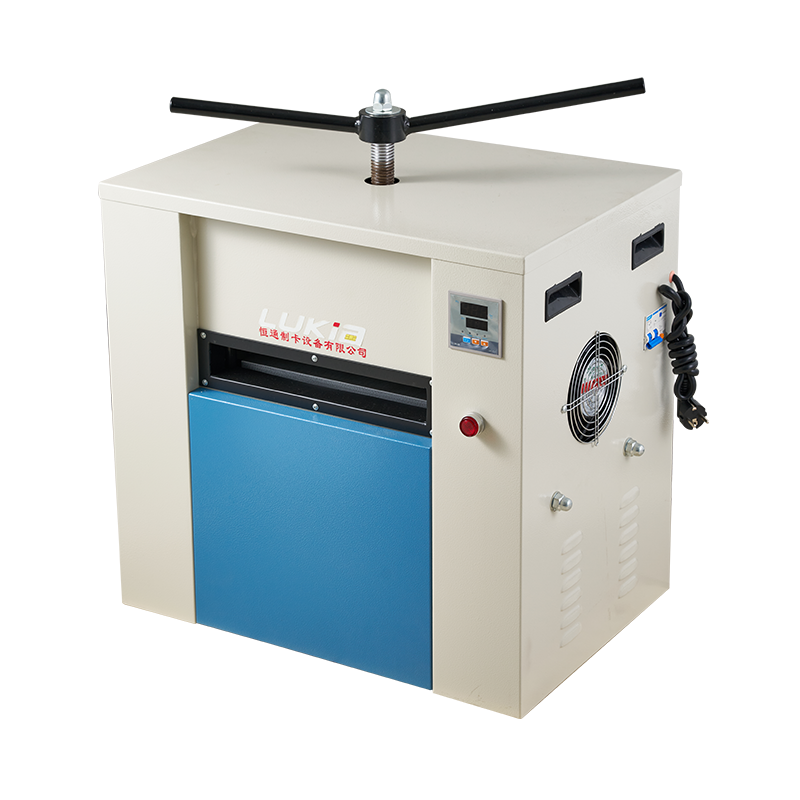

HT-C-2 Manual PVC Card Laminator

The HT-C-2 is used for making PVC card, during the card making procedure, it can laminate the material of making card needed one time. You can add pressure directly through the handwheel, the temperature is controlled by the digital apparatus, which automatically carries on all the processes of heating, keeping a stable temperature, cooling. When the procedure is over, it will sound out a warning. The lamination is cooled by both air and water. It has stable performance, simple operation, fine-looking appearance, accord with the occidental's concept.

Get A Quote Contact Us

HT-C-3 PID Electric Heating Smart Card Laminator No next article

Detail Parameters Get A Quote

Model	HT-C-2
Control System	Digital Meter
Voltage	220V 50-60Hz
Power	2.4KW
Pressure	Hand Wheel
Temperature Range	0-200°C
Time Range	0-999 Seconds
Opening Height	45mm
Lamination Size	A4(210mm*297mm)
Work Efficiency	≥500pcs cards per hour
Lamination Opening	One opening for heating and cooling
Lamination Layers	1-12 layers
Cooling System	Automatic water and air cooling
Packing Size	750mm780mm510mm
Packing Weight	130KG
Power Consumption	2.5-3.5 kwh electricity each hour
Cycle time	8-10 minutes
Operate Person	1
