HT-C-3 PID Electric Heating Smart Card Laminator

HENGTONG is willing to cooperate sincerely with all customers for the mutual growth and development.

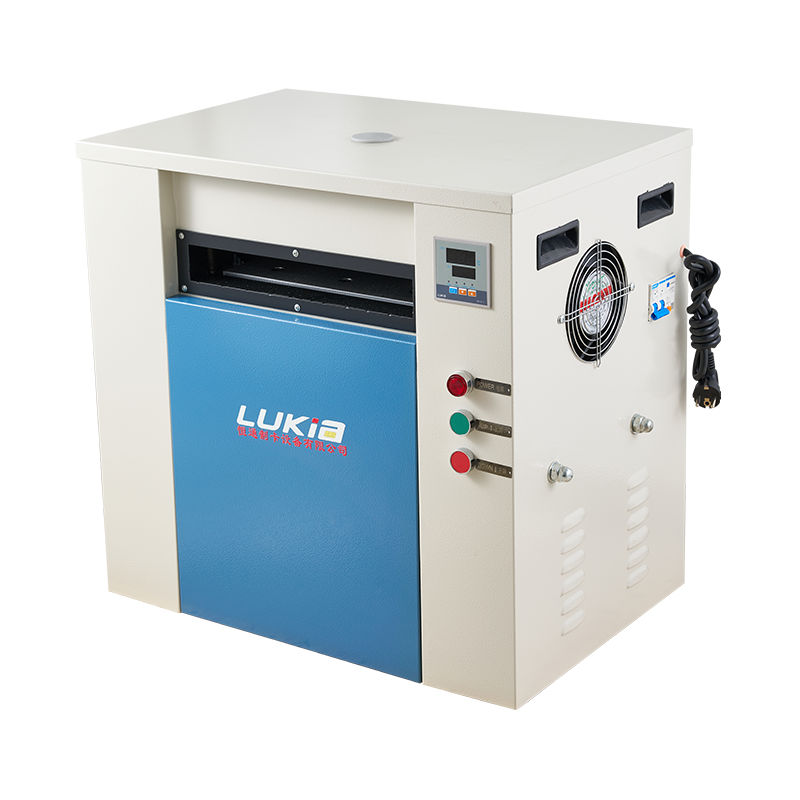

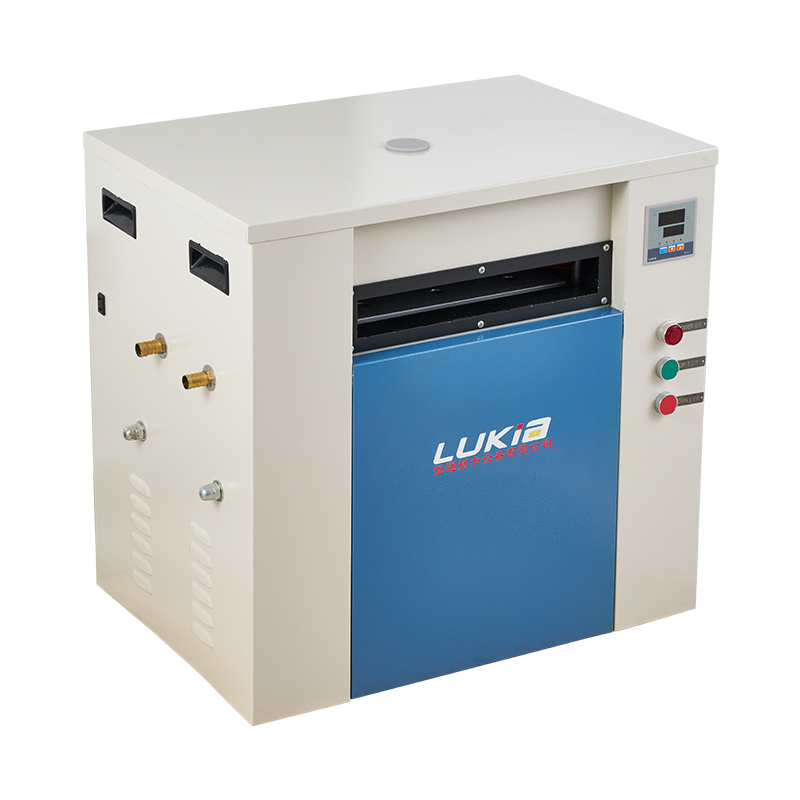

HT-C-3 PID Electric Heating Smart Card Laminator

HT-C-3 PID Electric Heating Smart Card Laminator

HT-C-3-A4 Card Laminating Machine
The use of unit hydraulic station system, PID control, instrument interface settings, low noise, easy to operate;
Single tower at the same time heating, while cooling structure, the efficiency of ordinary: for the production of various types of personalized inkjet, digital portrait card, intelligent IC, ID, Inlay lamination; card factory card; and pre-printing proofing test.

Get A Quote Contact Us
  • HT-C-3 PID Electric Heating Smart Card Laminator
  • HT-C-3 PID Electric Heating Smart Card Laminator
  • HT-C-3 PID Electric Heating Smart Card Laminator
HT-C-6-A4 Single-Cylinder Smart Card Laminator HT-C-2 Manual PVC Card Laminator
Detail Parameters Get A Quote
Format 210*297mm
ISO CR-80 Templates A 10-up layout for standard ISO cards on sheet
Speed Output up to 200 cards/cycle (ISO CR-80 cards)
Loading 1 opening of heating, 1 opening of cooling
Controlling Method PID
Pressure Method Oil hydraulic pressure system
Pressure Range 1~12 Mpa, 1 step pressure
Heating Method Heating elements (Heating tubes) - PID
Cooling Method Water cooling + Air cooling
Power 220V, 50/60Hz - 3.5KW
Machine Weight (Packed) Approximately 130 KGS
Total Shipping Dimensions H730×W460×H740 mm (1 crate)
